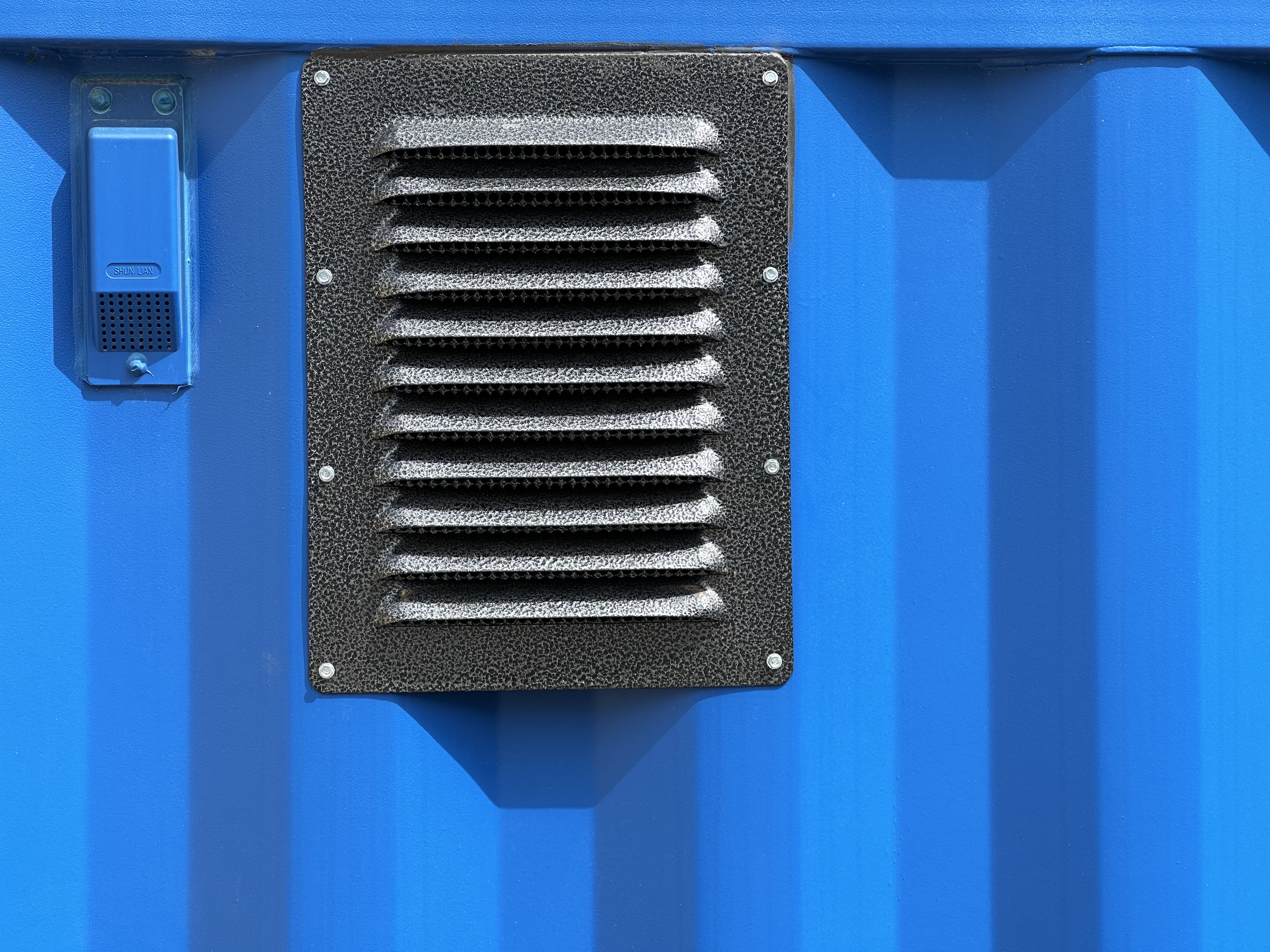

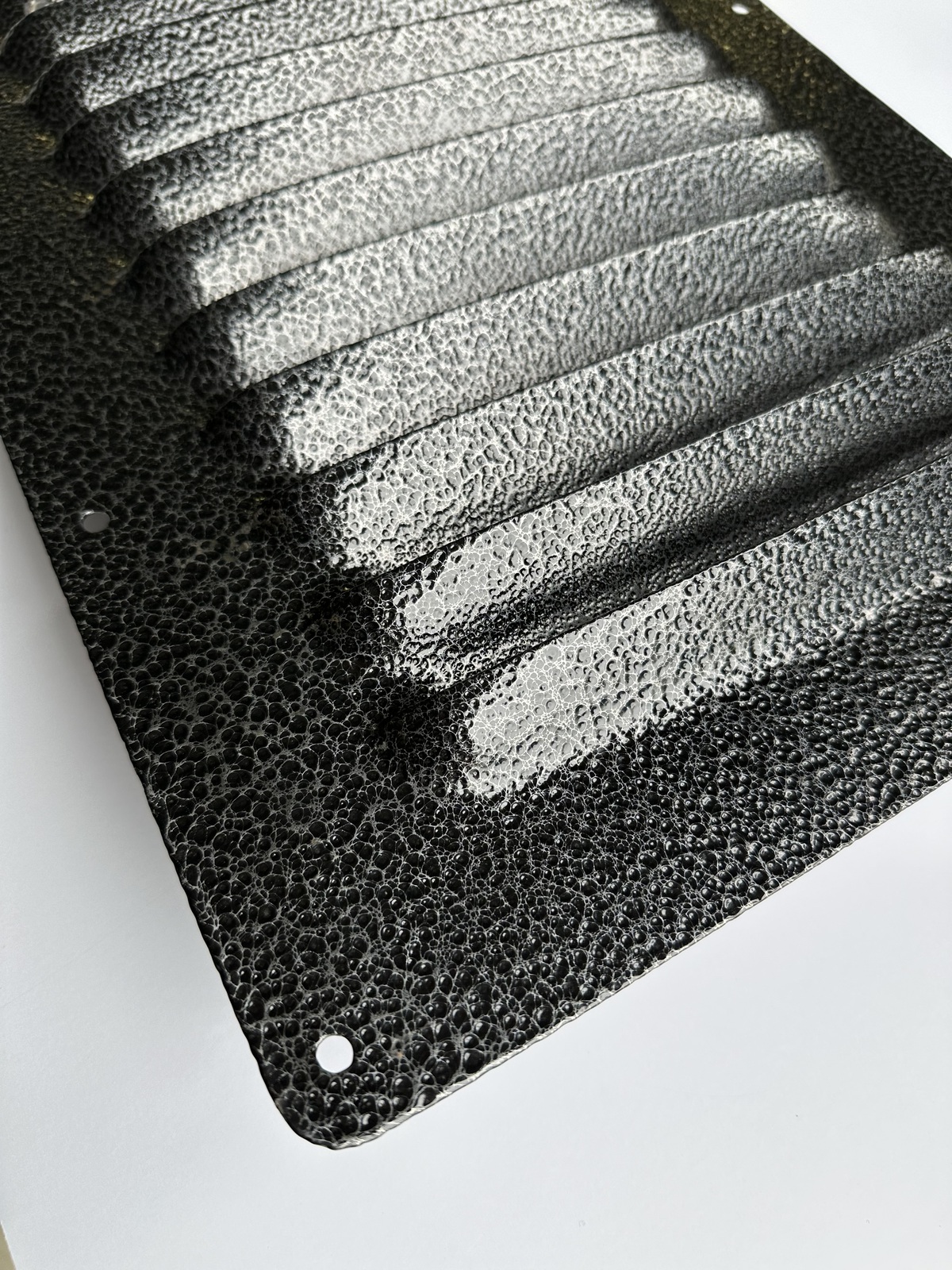

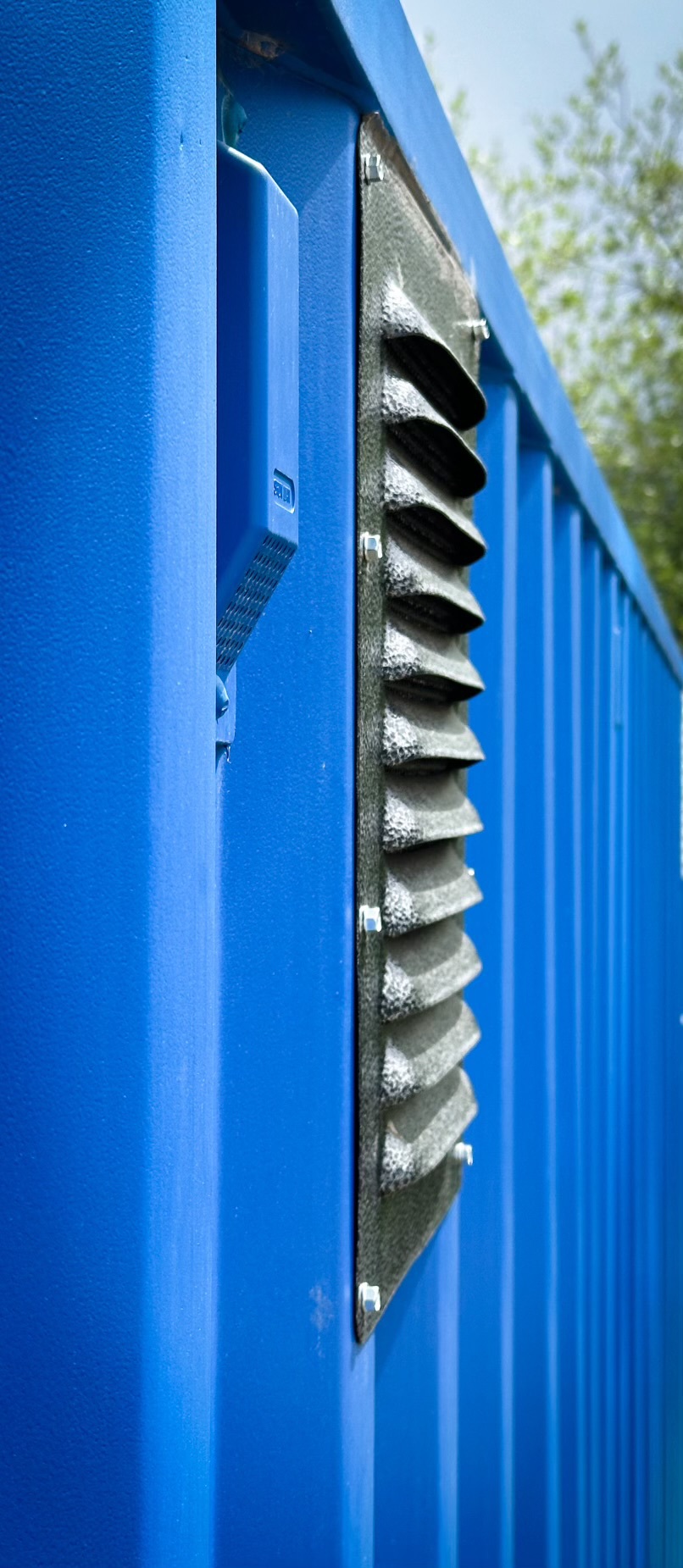

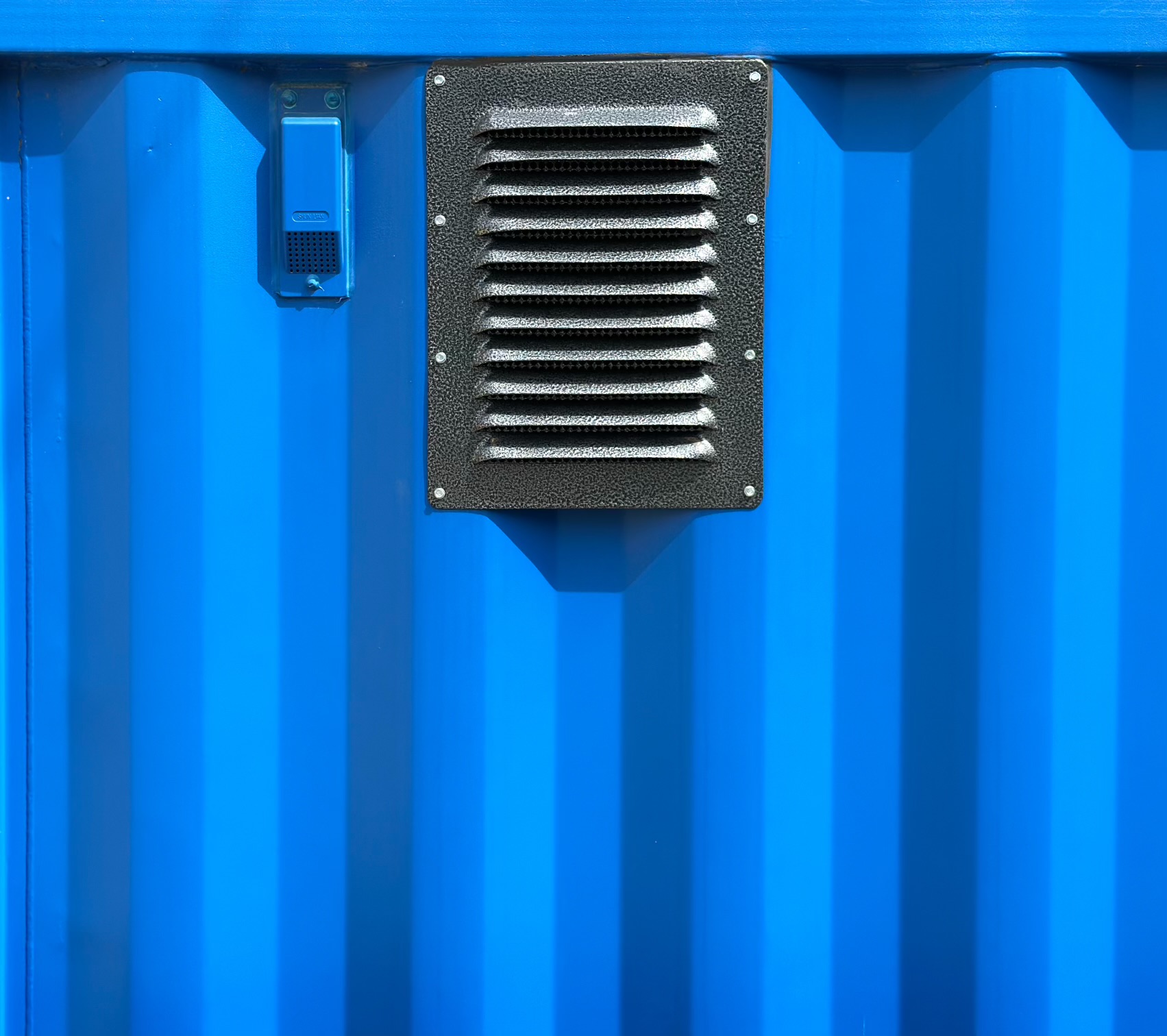

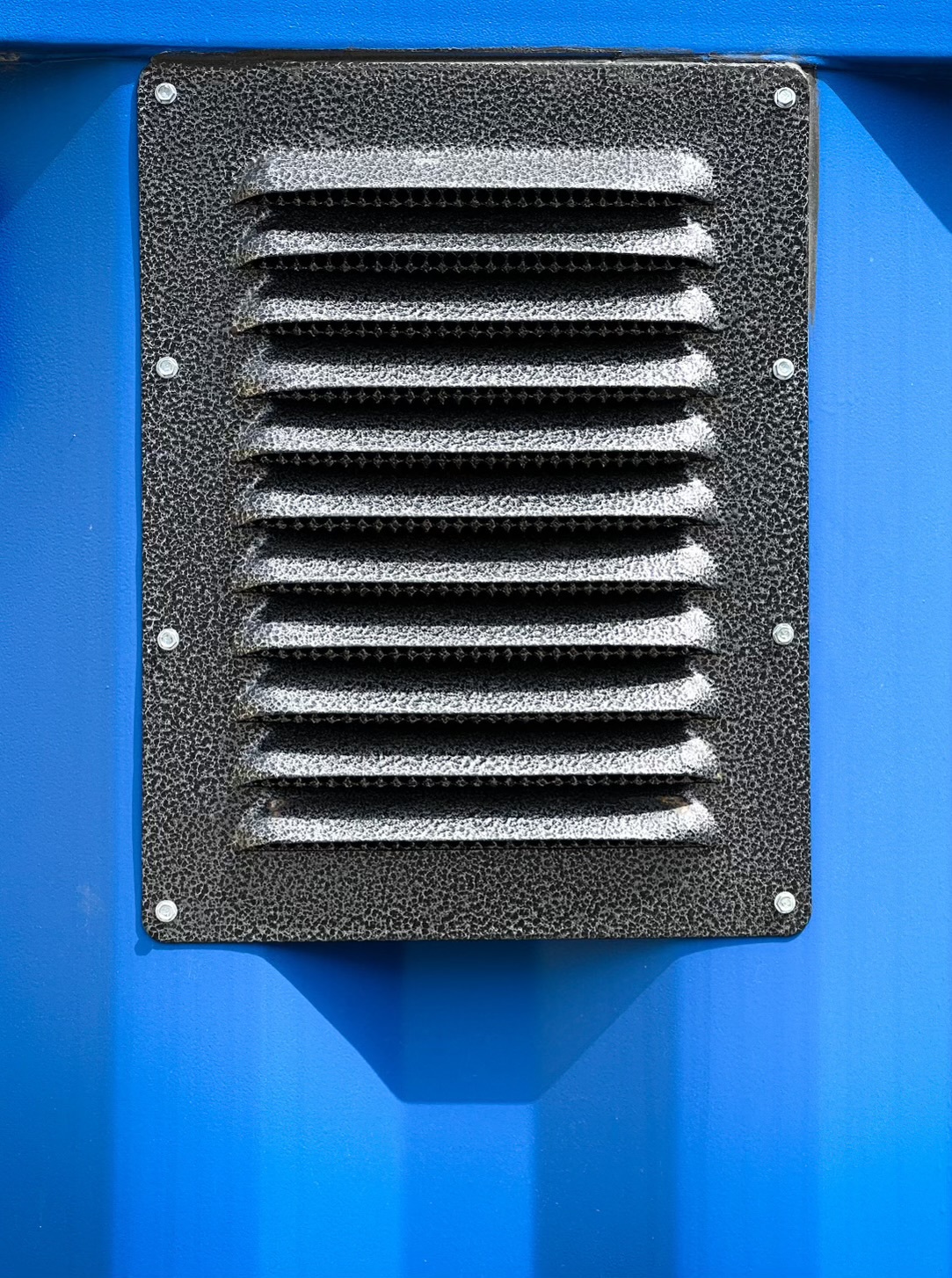

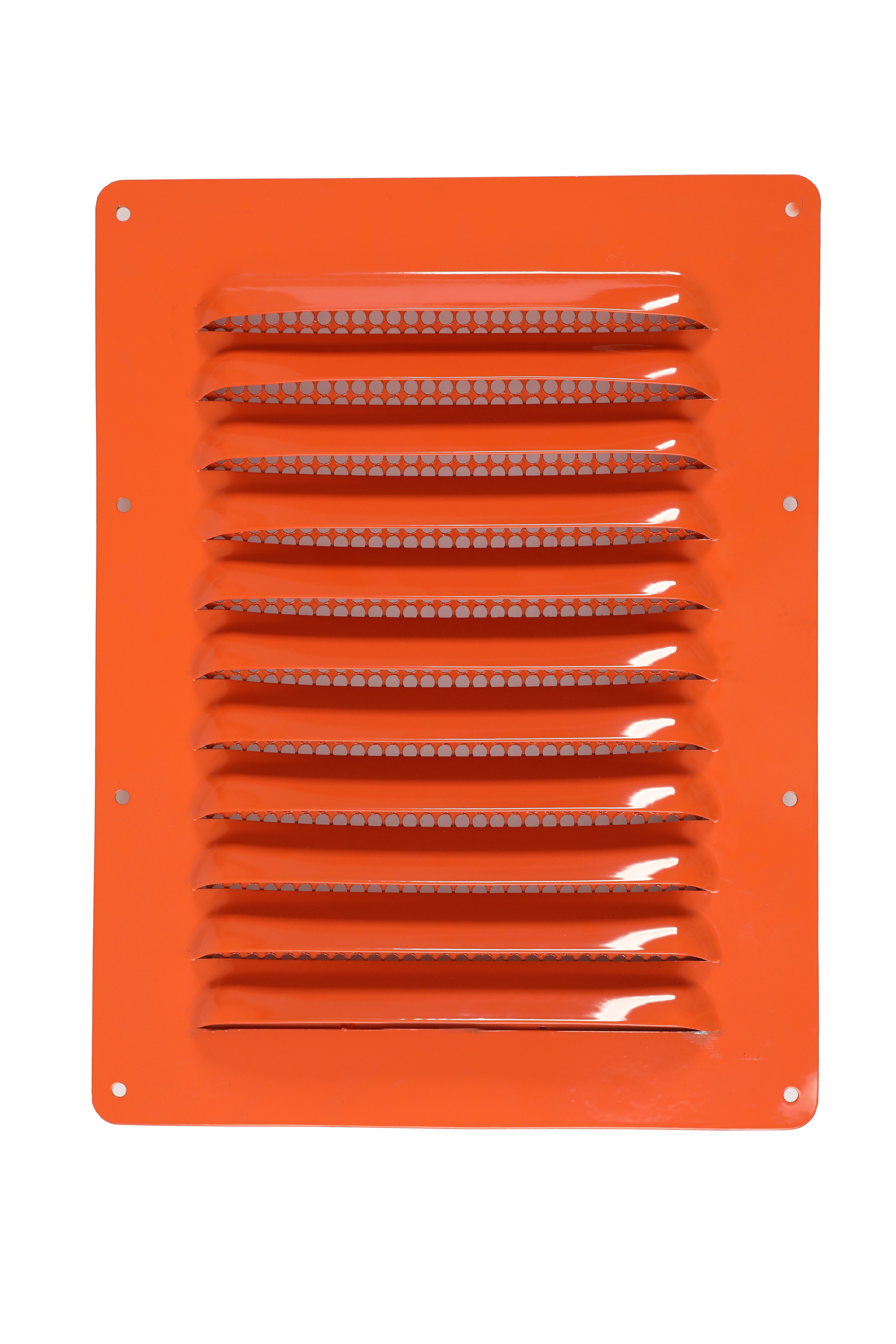

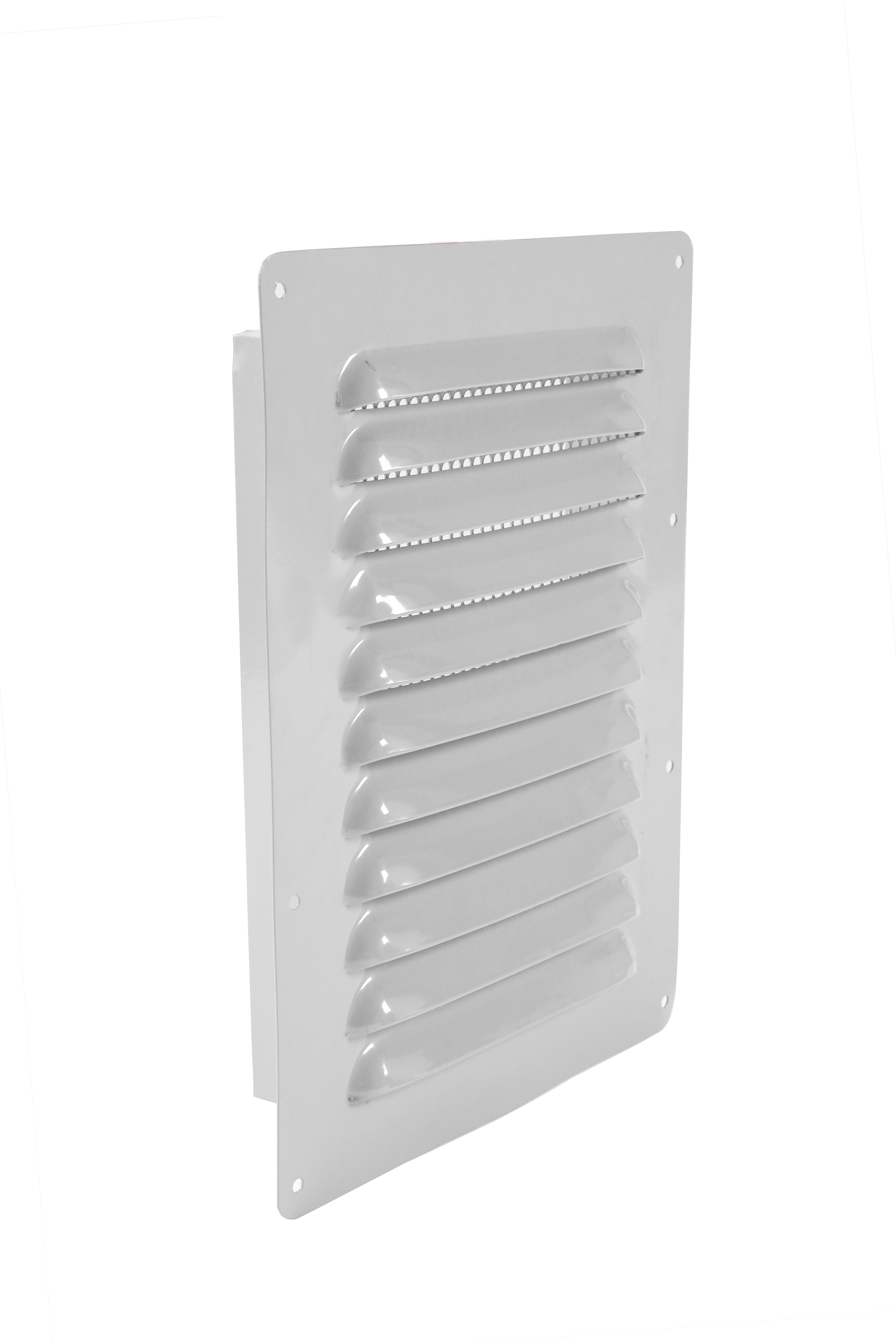

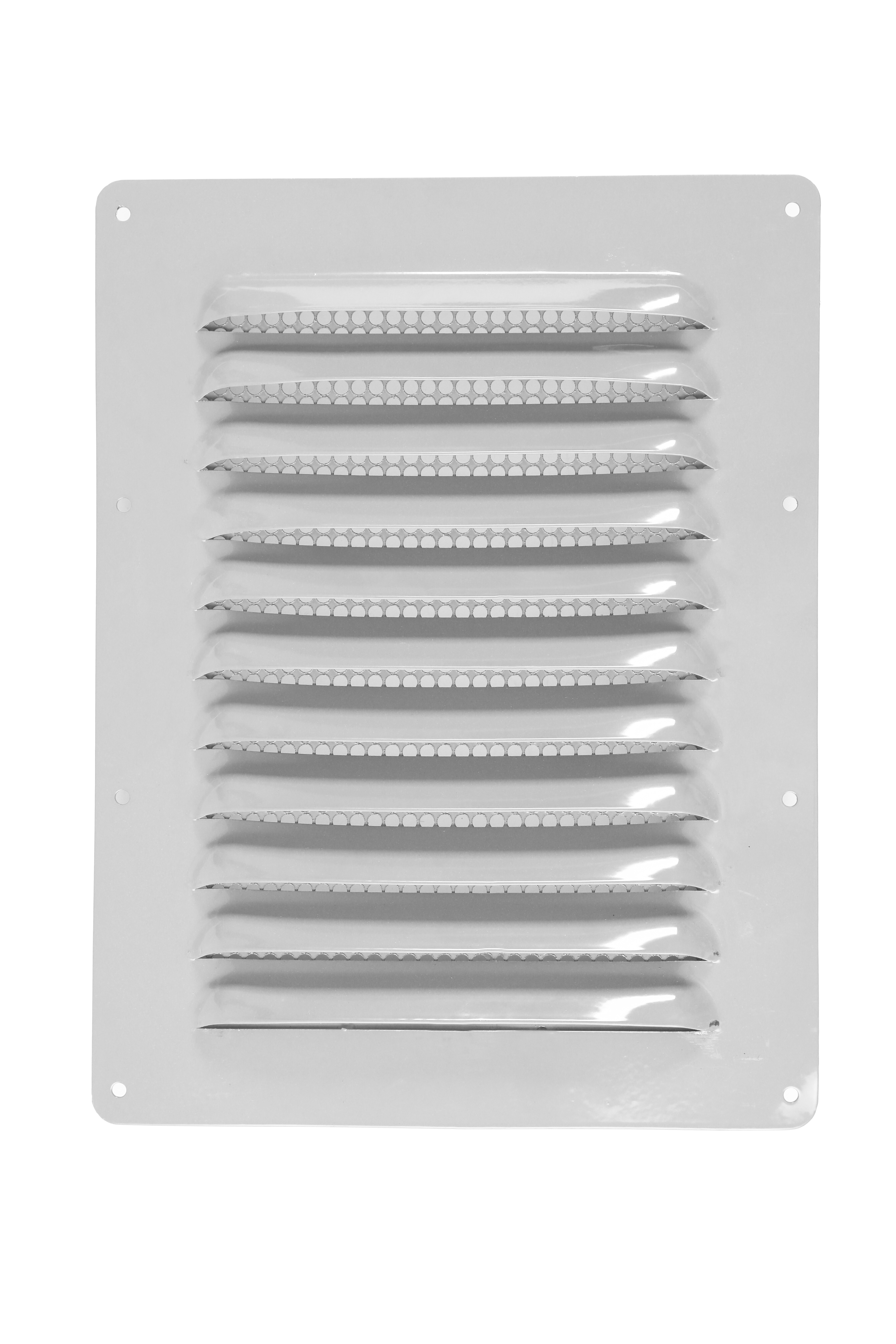

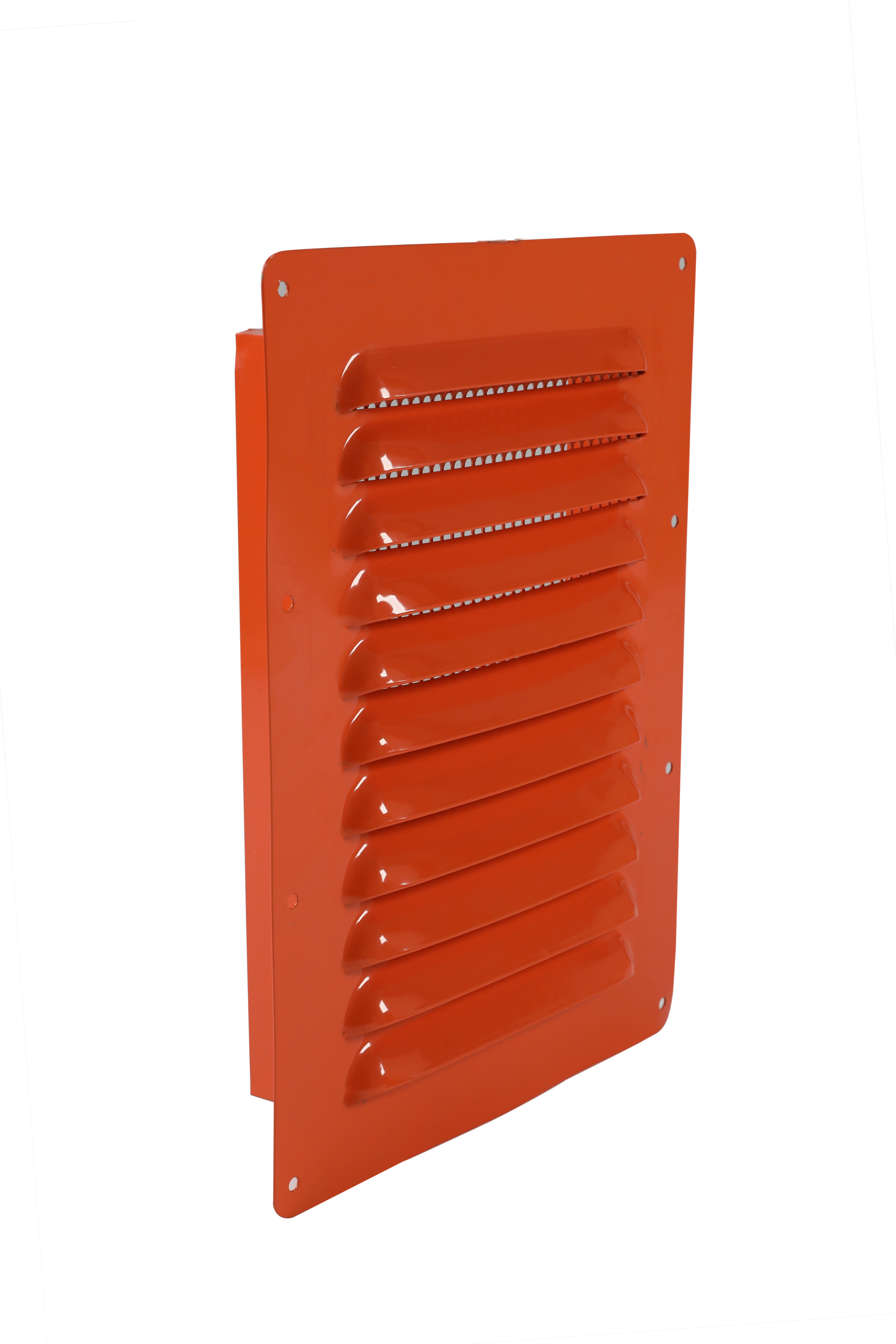

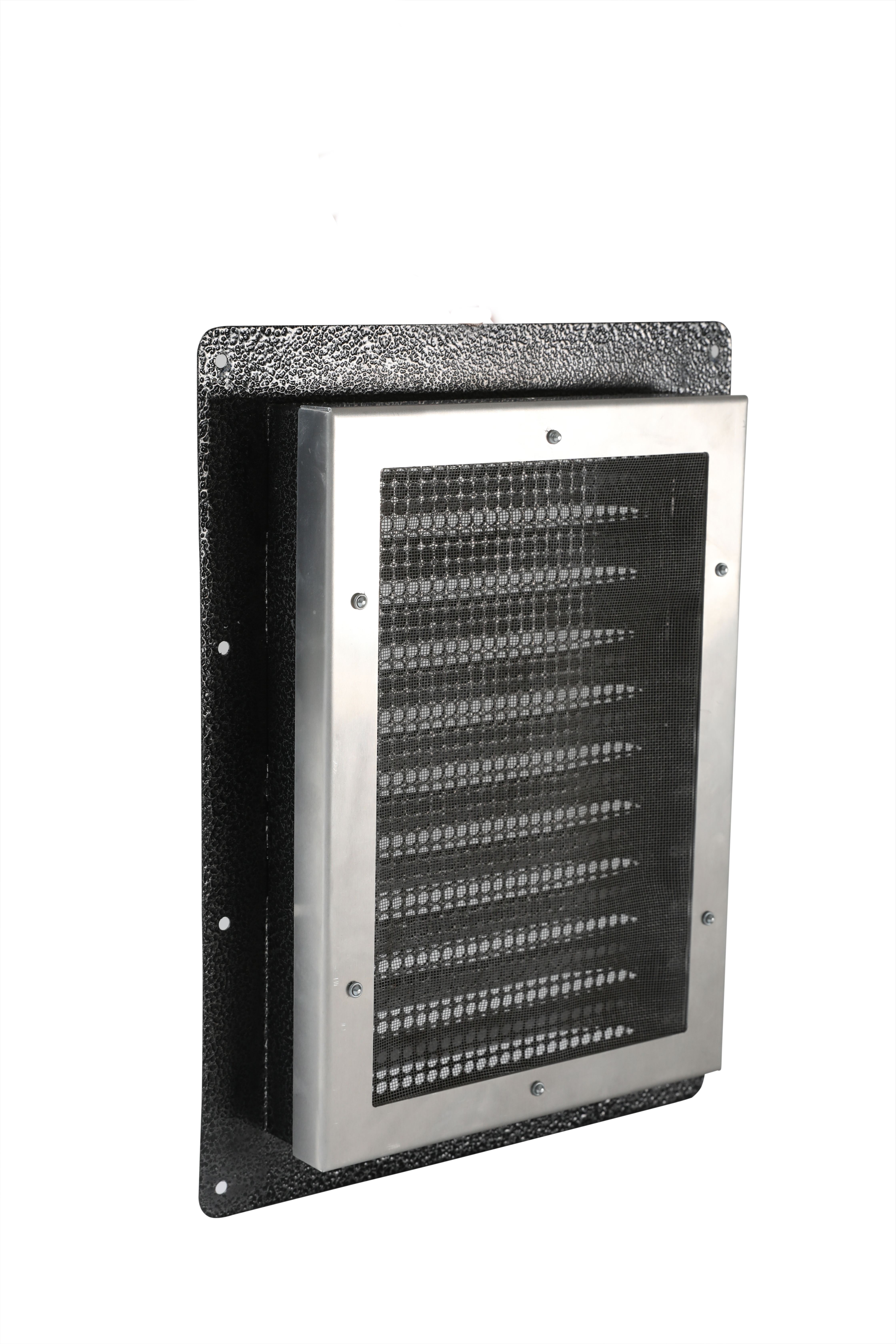

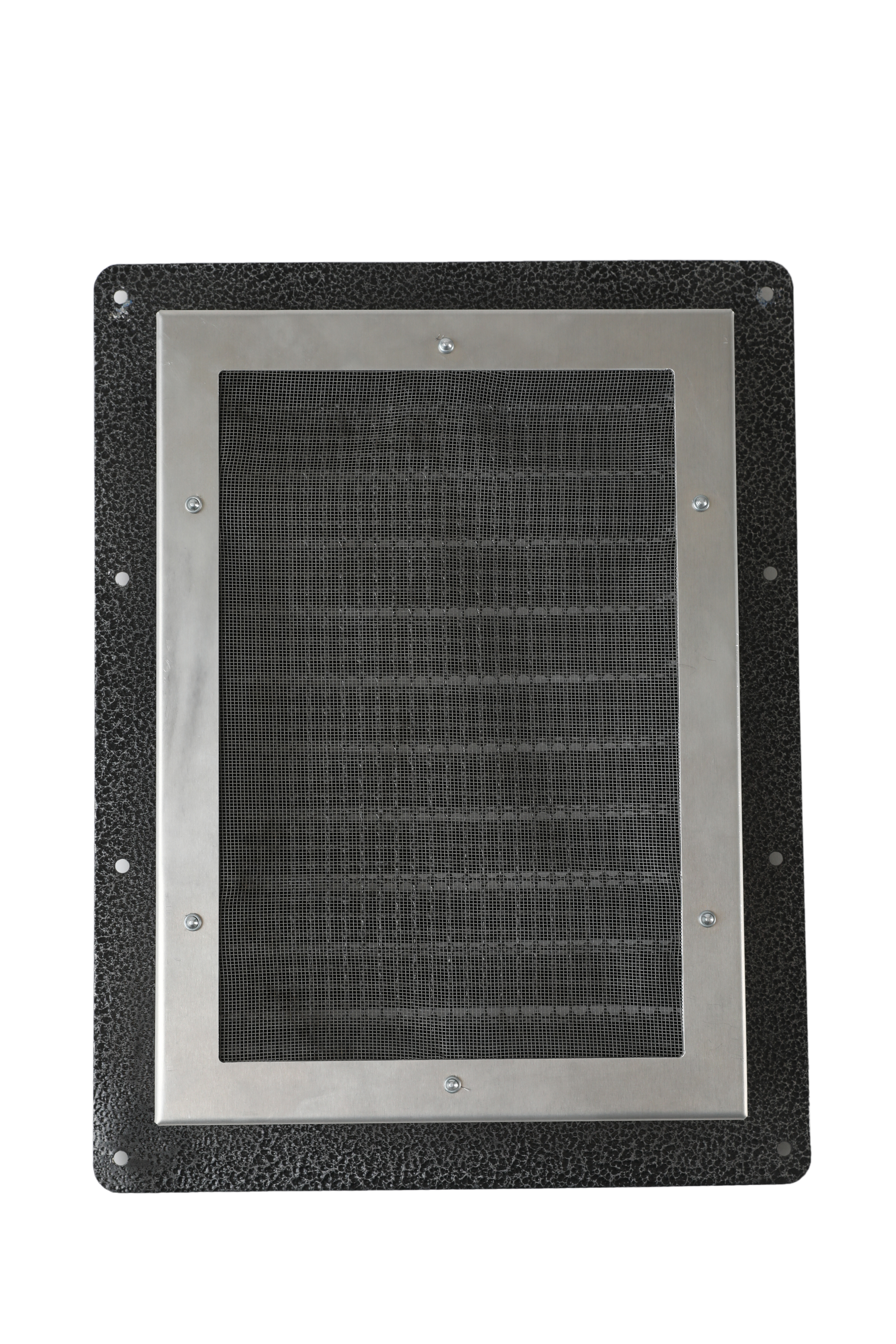

#6068 LV INSTA Louvered Vent

Anytime a container is used for storage of household items, heavy machinery, automobiles, dry goods, chemicals or pressurized gases, superior ventilation is critical.  The INSTA 6068 LV provides that!  This new design allows for superior ventilation of your shipping container, thereby reducing heat, moisture and fume accumulation inside your container.  Each vent comes with an integrated pest screen with 1,290 - 1/4" (6.4mm) diameter holes.  Eleven low-profile louvres keep rain out!  Powder-coated dark gray or white.  This unit is designed to be bolt-on so no welding or painting is required!  Oh, and did we tell you?  The INSTA LV Vents install in less than 30 minutes!

#6068 LV INSTA Louvered Vent

  • 16 gauge steel construction
  • ” H x 13” W x 2.8” D / 432mm x 330mm x 71mm

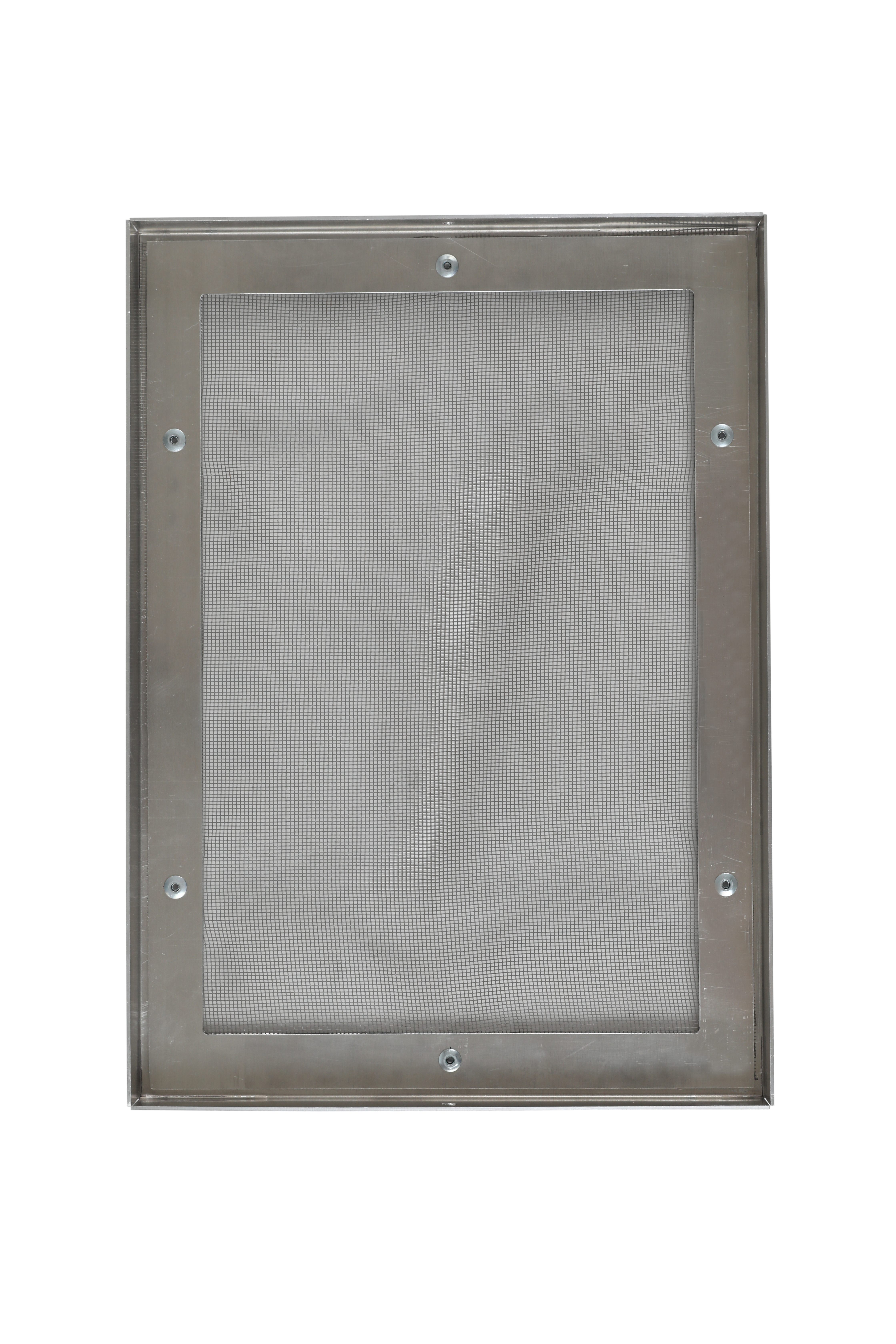

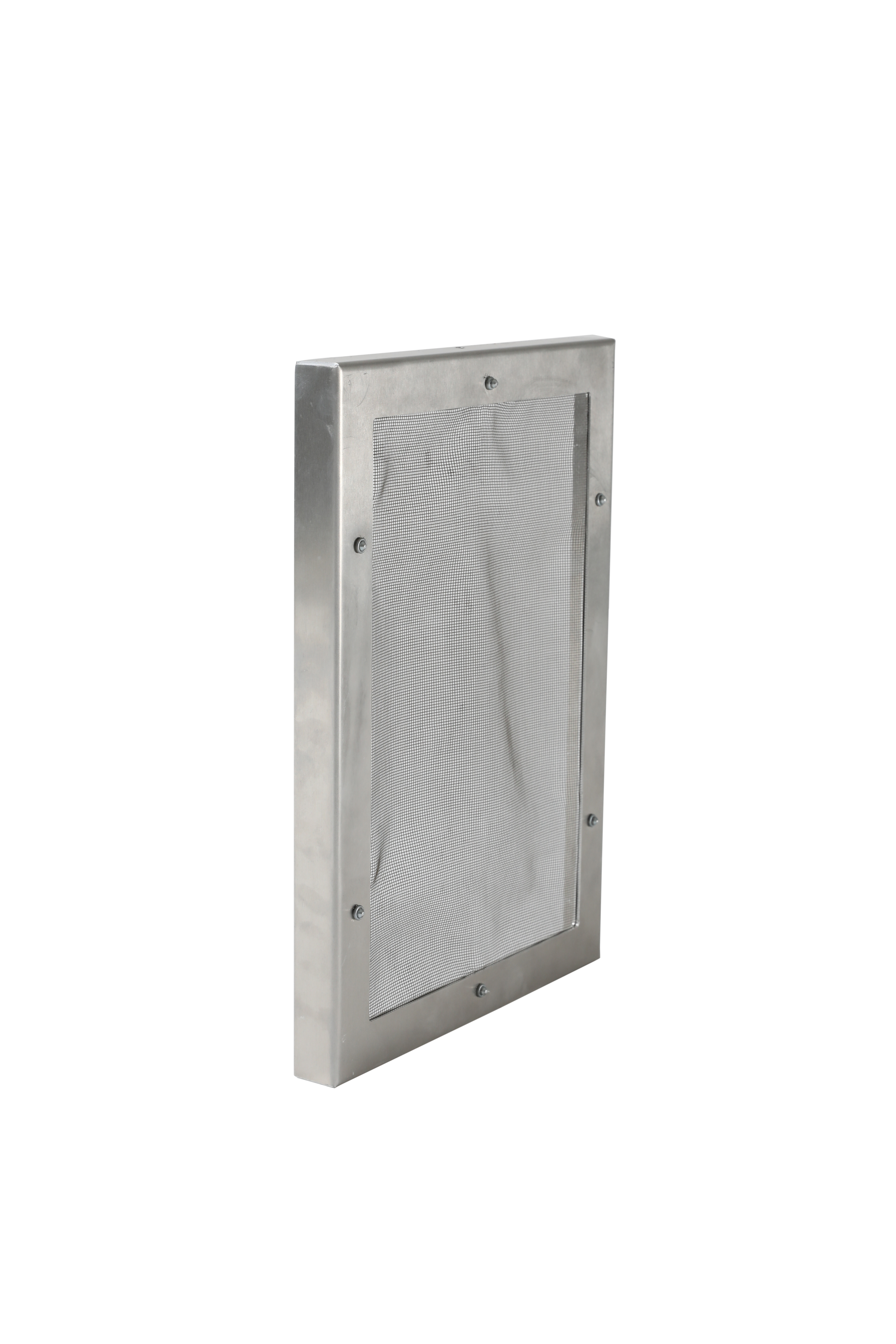

  • Pest screen size:  13.75” H x 9.75” W / 349mm x 248mm

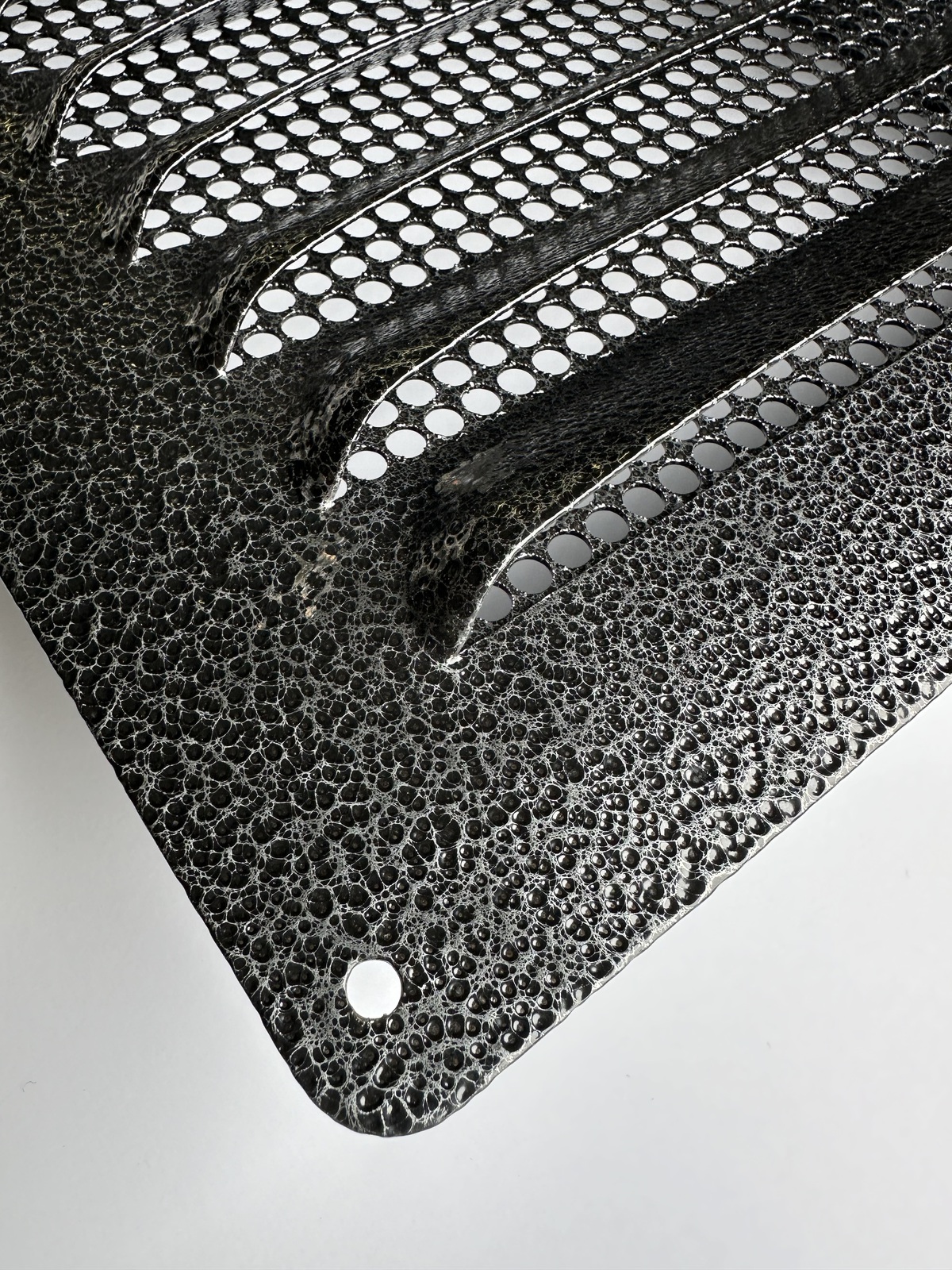

  • Pest screen holes:  1,290 x 1/4" diameter holes
  • Pest screen total air passage area:  63.3 in² / 408 cm²

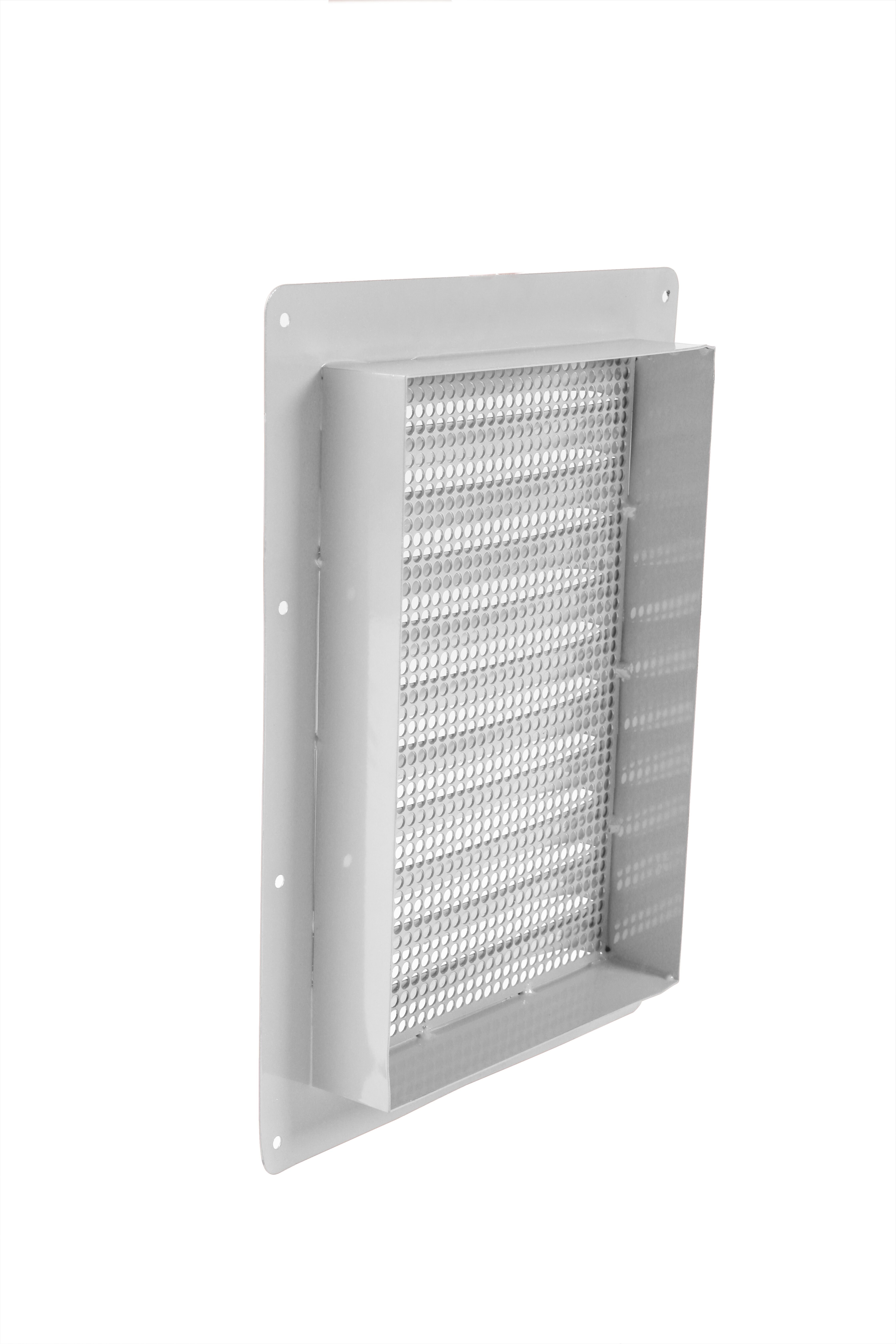

  • Powder-coated dark grey or white
  • 5.0 lbs / 2.3 kg
  • Eight 1/4" (6.4mm) diameter mount holes
  • Mounting hardware available
  • 4.5 x the air passage area as our 6067 INSTA Vent

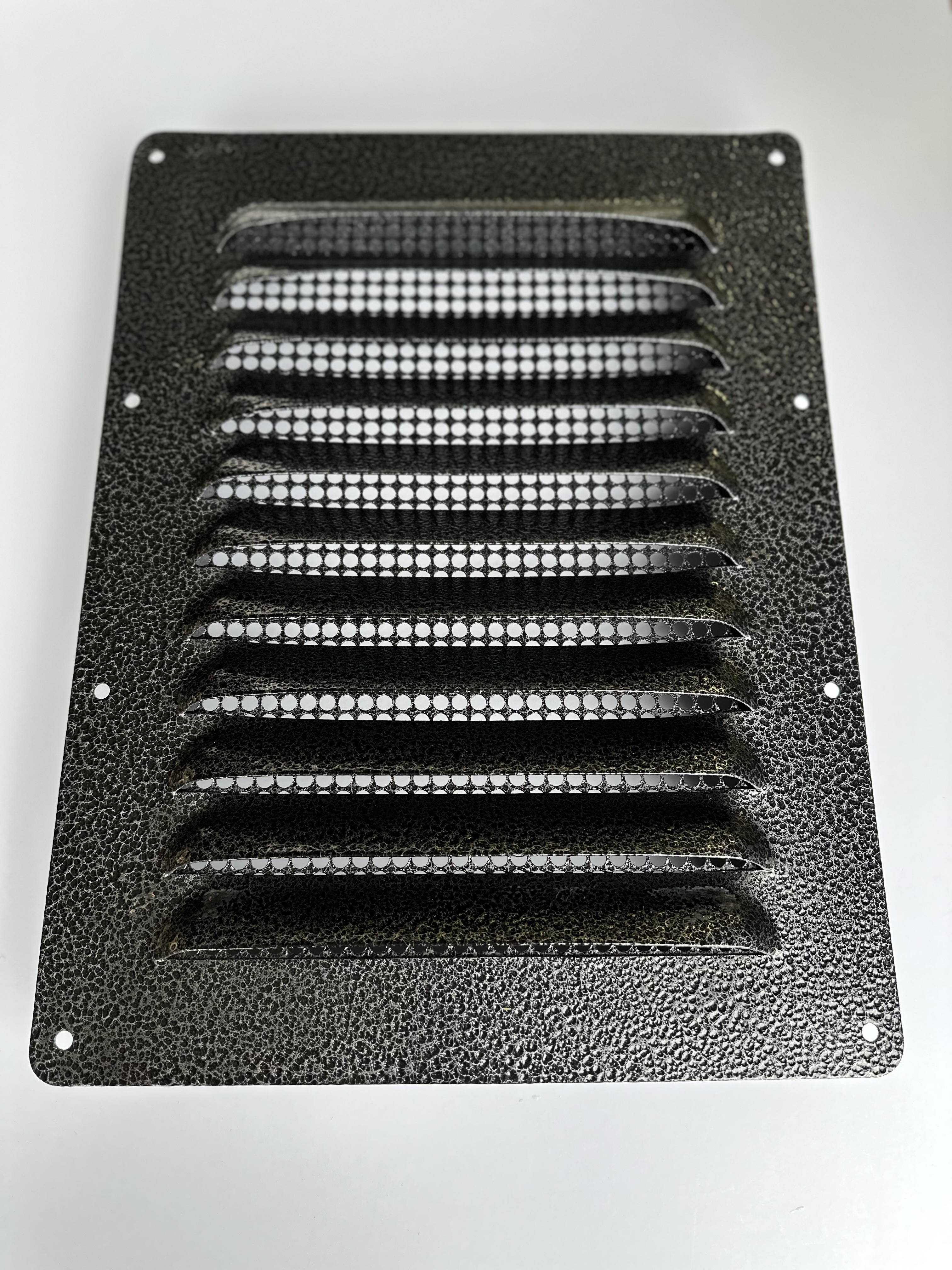

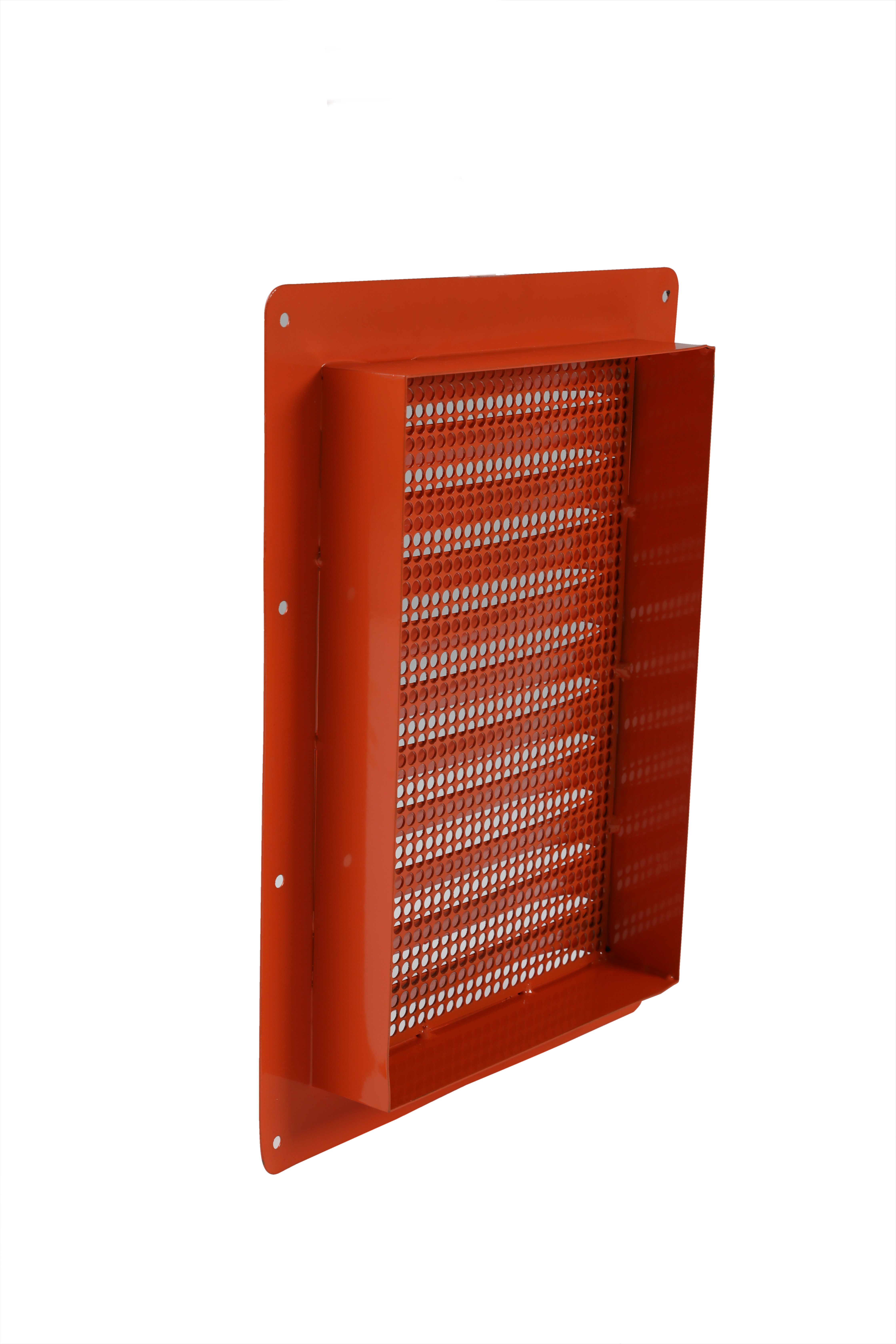

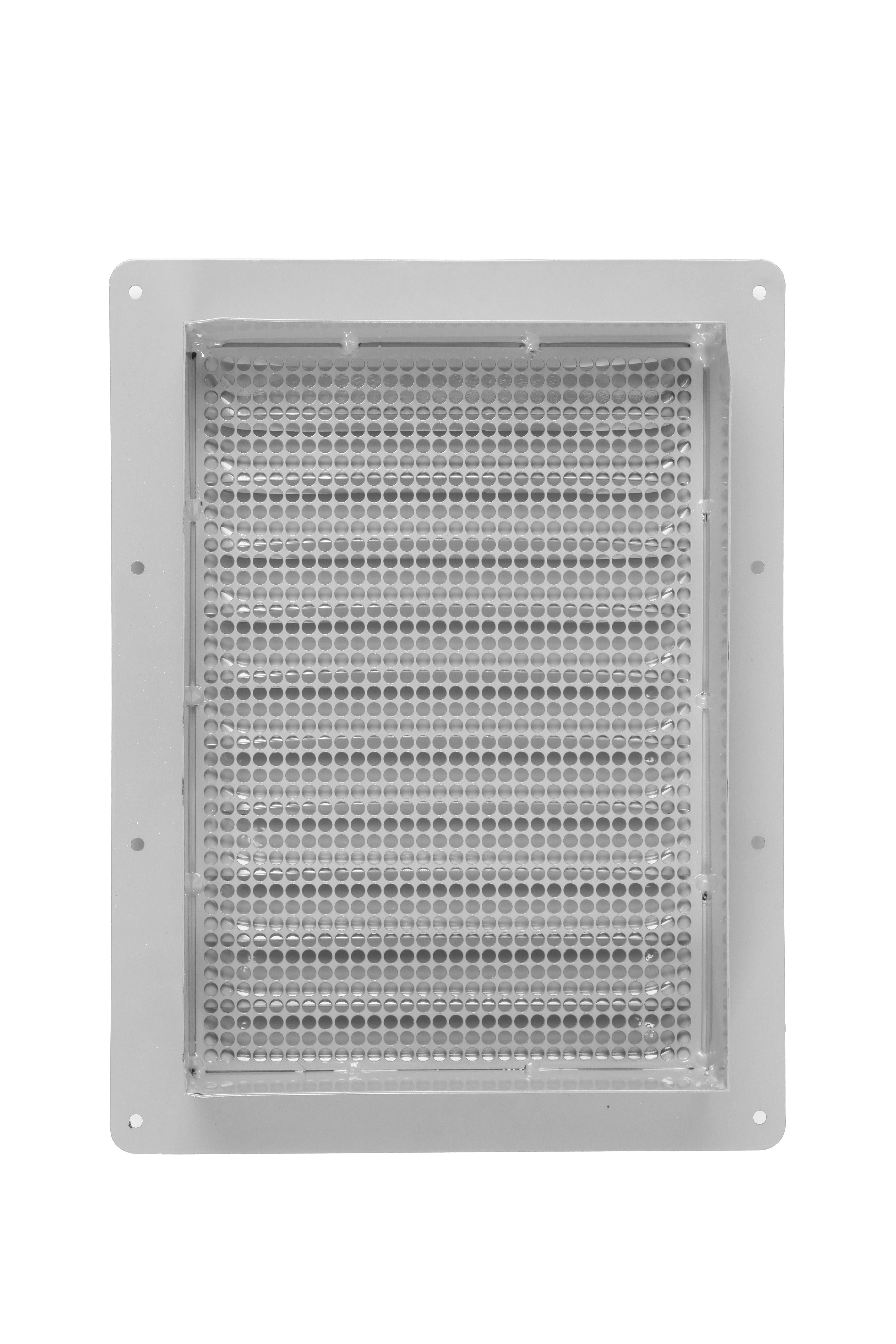

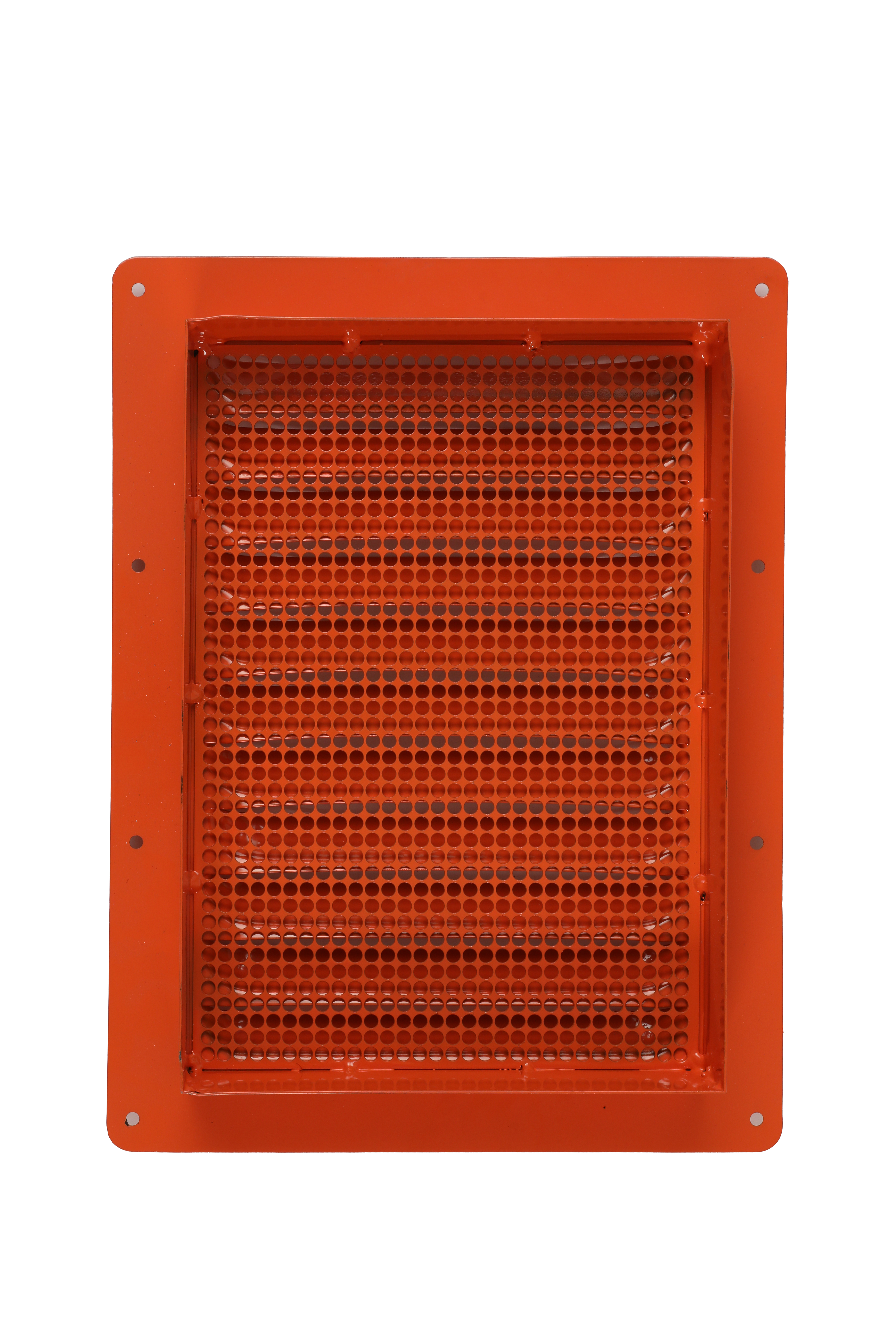

  • Integrated pest screen
  • Capable of high volume air transfer
  • Prevents moisture and fume accumulation
  • Louvres keep rain out
  • Easy to install in under 30 minutes
  • Maintenance free
