Shipping containers are built to be strong, secure and weather-resistant. However, that tight construction can also trap warm air, humidity and fumes inside. Without proper shipping container ventilation, changing temperatures may contribute to moisture buildup, condensation and uncomfortable interior conditions.

The #6068 LV INSTA Louvered Vent provides a practical, high-volume ventilation solution for containers used to store household belongings, machinery, vehicles, dry goods, chemicals and pressurized gases. For added insect protection, it can be paired with the #6069 LV Bug Screen.

Why Is Shipping Container Ventilation Important?

A closed shipping container can heat up quickly, especially during warmer weather or when exposed to direct sunlight. As temperatures change throughout the day, warm and humid air can become trapped inside the container.

Installing shipping container vents allows air to move through the space more effectively. Improved airflow can help reduce:

• Heat accumulation
• Excess humidity
• Moisture and condensation
• Stale air
• Fume buildup

The right ventilation setup will depend on the container’s size, climate, location and what is being stored. In many applications, vents are installed on opposing walls to encourage cross-flow ventilation, allowing fresh air to enter while warmer, moist air escapes.

High-Volume Airflow in a Low-Profile Design

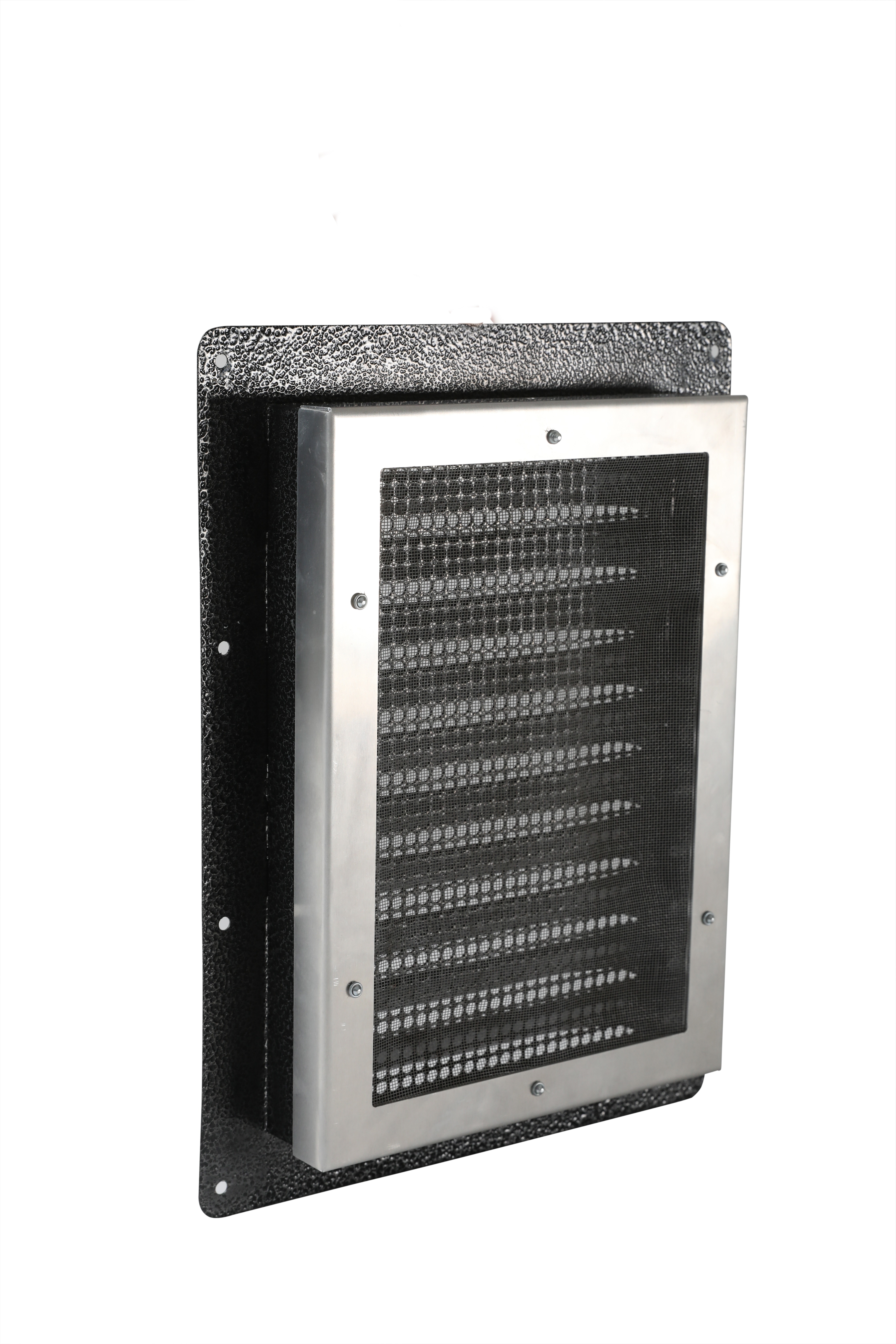

The #6068 LV INSTA Louvered Vent was designed to provide substantial airflow without adding a bulky projection to the outside of the container.

The vent measures 17 inches high by 13 inches wide by 2.8 inches deep and is manufactured from durable 16-gauge steel. Its integrated pest screen contains 1,290 quarter-inch holes, providing a total air passage area of approximately 63.3 square inches.

That gives the #6068 LV approximately 4.5 times the air passage area of the #6067 INSTA Vent, making it an excellent choice for applications requiring high-volume air transfer.

Eleven Louvres Help Keep Rain Out

Airflow is important, but a container vent also needs to help protect the interior from the elements.

The #6068 LV features eleven low-profile louvres designed to shed rain while still allowing air to pass through the vent. This makes the product well suited to outdoor containers exposed to changing weather conditions.

A full 1.5-inch mounting flange wraps around the entire vent, including the top and bottom. This provides a complete mounting surface around the opening so the vent can be properly sealed during installation.

Integrated Pest Protection

Every #6068 LV INSTA Louvered Vent includes an integrated pest screen. The screen’s quarter-inch openings allow high-volume airflow while helping prevent larger pests and debris from entering through the vent.

For customers who require additional protection from smaller insects, the vent can also be ordered with the #6069 LV Bug Screen.

Add the #6069 LV Bug Screen for Insect Protection

The optional #6069 LV Bug Screen is designed specifically for the rear of the #6068 LV INSTA Louvered Vent. It helps keep flies, mosquitoes and other insects from entering the container while allowing air to continue moving through the vent.

Installation is simple: the screen mounts to the rear of the vent using two self-tapping screws. This makes it easy to add insect protection during the original vent installation or as a later upgrade.

The bug screen may be especially useful for containers used as:

• Workshops
• Equipment rooms
• Seasonal storage spaces
• Mobile offices
• Agricultural storage
• Recreational spaces
• Containers located near standing water, vegetation or wooded areas

No Welding or Painting Required

Like many INSTA products, the #6068 LV was developed to simplify the container modification process.

The vent is designed for bolt-on installation, so welding is not required. It is supplied with a powder-coated finish in dark grey or white, eliminating the need to paint the vent before installation.

The vent includes eight quarter-inch mounting holes and can typically be installed in less than 30 minutes by someone with suitable tools and detailed installation instructions which are included when you purchase our vent. Mounting hardware is also available.

Always have the product in hand before cutting the container opening or completing fabrication. Product dimensions can have small production variances, so exact measurements should be taken directly from the vent before installation.

Built for a Variety of Storage Applications

The #6068 LV INSTA Louvered Vent can be used in containers storing many different types of materials and equipment, including:

• Household belongings and furniture
• Heavy machinery and tools
• Automobiles and vehicle parts
• Dry goods and inventory
• Chemicals
• Pressurized gases

Ventilation requirements can vary significantly between these applications. Containers storing chemicals, fuels or pressurized gases may have specialized ventilation and safety requirements, so the final setup should always comply with applicable codes and the recommendations for the materials being stored.

A Complete Ventilation and Insect-Protection Solution

The #6068 LV INSTA Louvered Vent combines high-volume airflow, weather-conscious louvres, durable steel construction and straightforward bolt-on installation in one low-profile product.

Adding the optional #6069 LV Bug Screen creates a more complete solution for customers who want to improve shipping container ventilation while also helping keep insects outside.

Ready to improve the airflow in your shipping container? Contact the INSTA Container Modification sales team to request a quote for the #6068 LV INSTA Louvered Vent, the #6069 LV Bug Screen and available mounting hardware.
